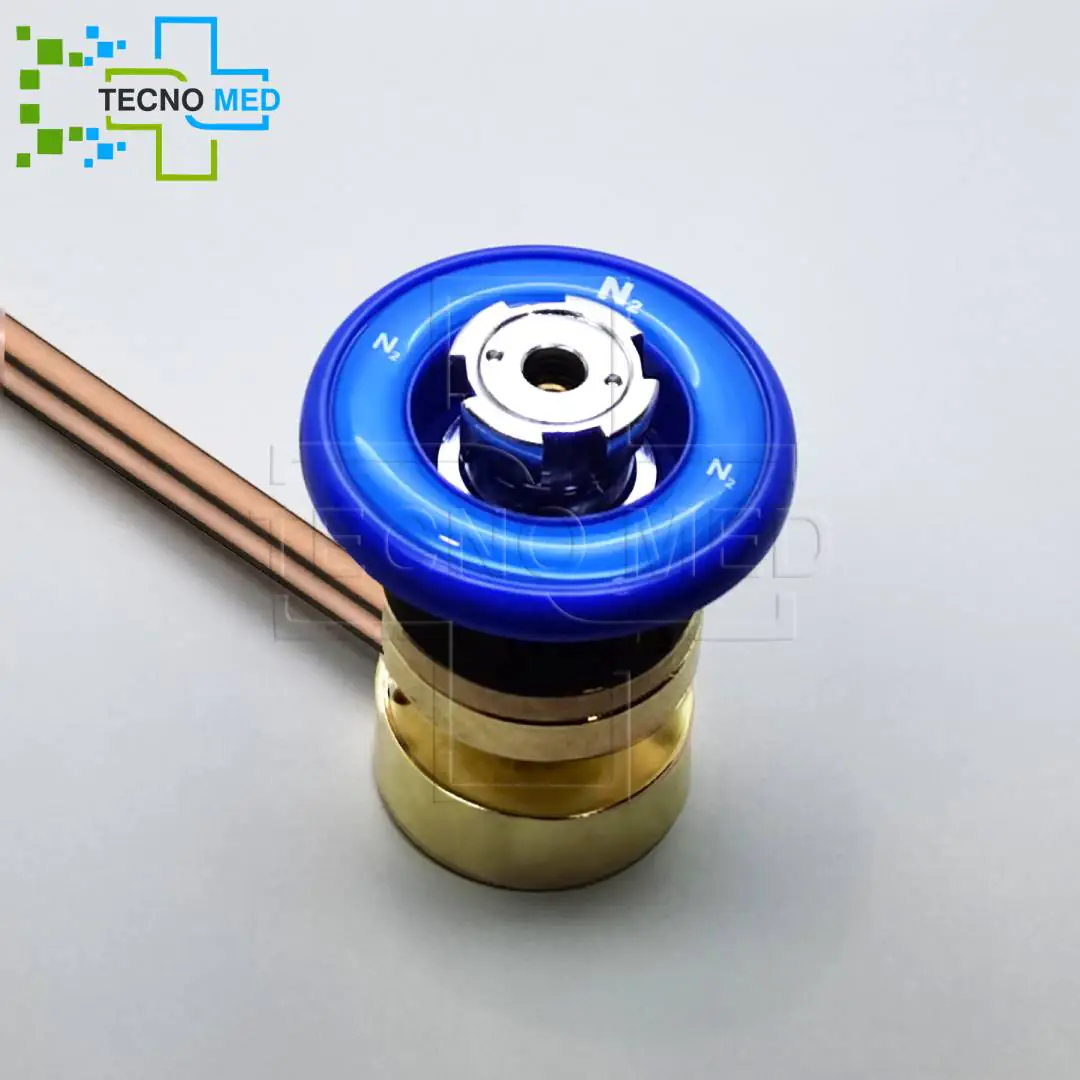

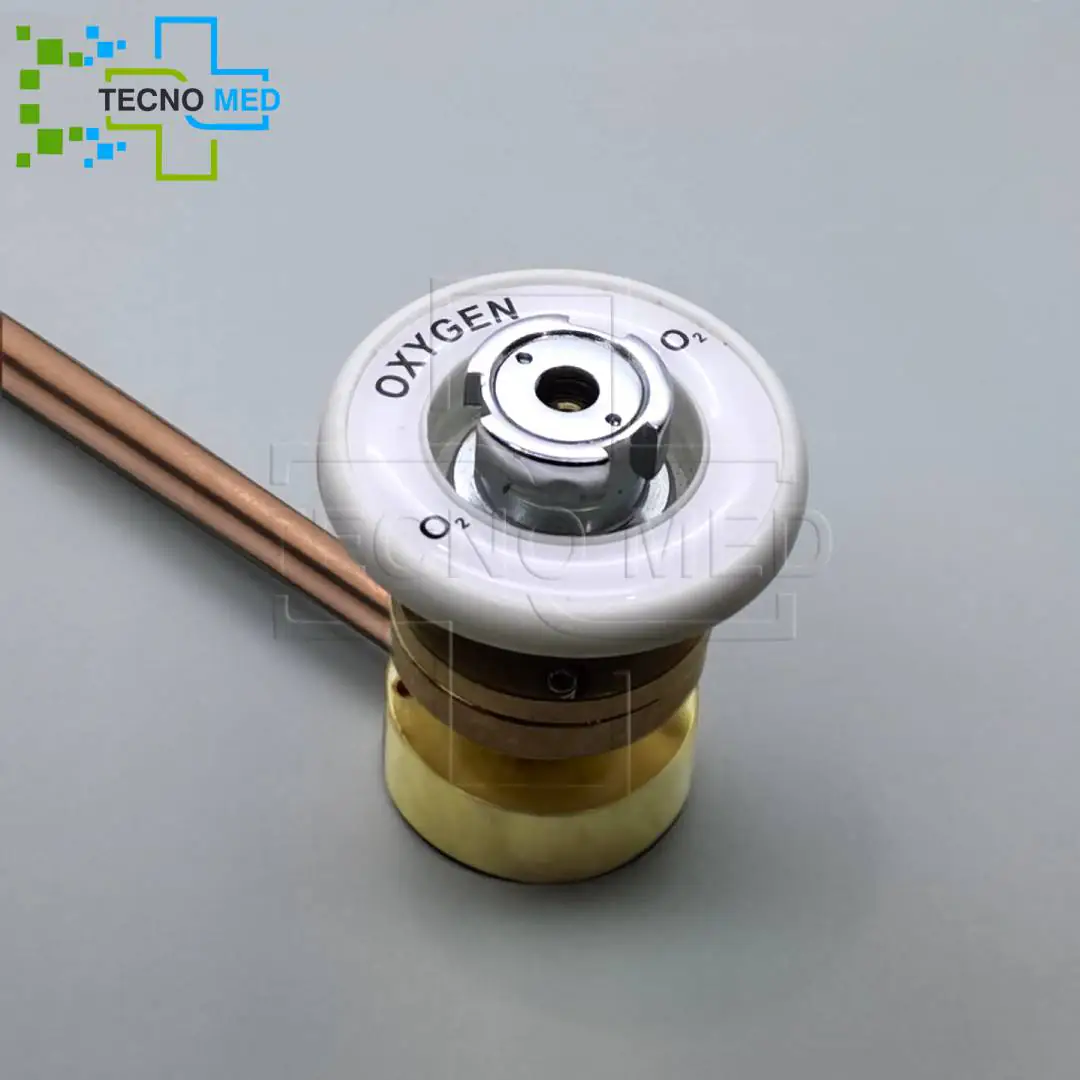

Afnor oksijen gaz prizi – güvenli medikal gaz çıkışı

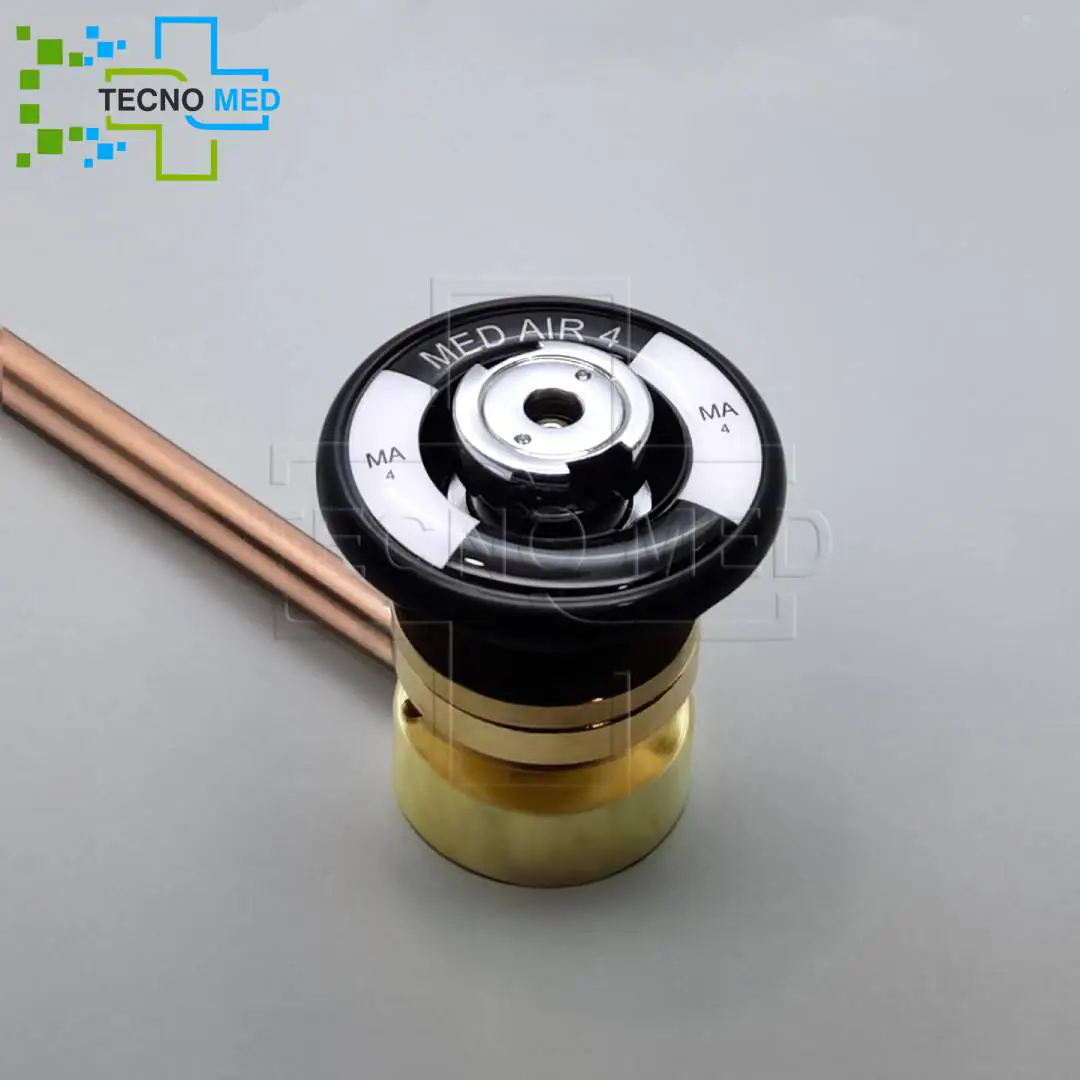

Medical Gas Outlet Afnor Norm

Tecnomed’s AFNOR-compliant medical gas outlets ensure the safe and controlled delivery of oxygen, vacuum, nitrous oxide, and anaesthetic gases used in healthcare facilities. With a compact structure and color-coded design, these outlets enable quick integration into bed head units or gas modules. Stainless steel and plastic body options make them suitable for different project requirements.

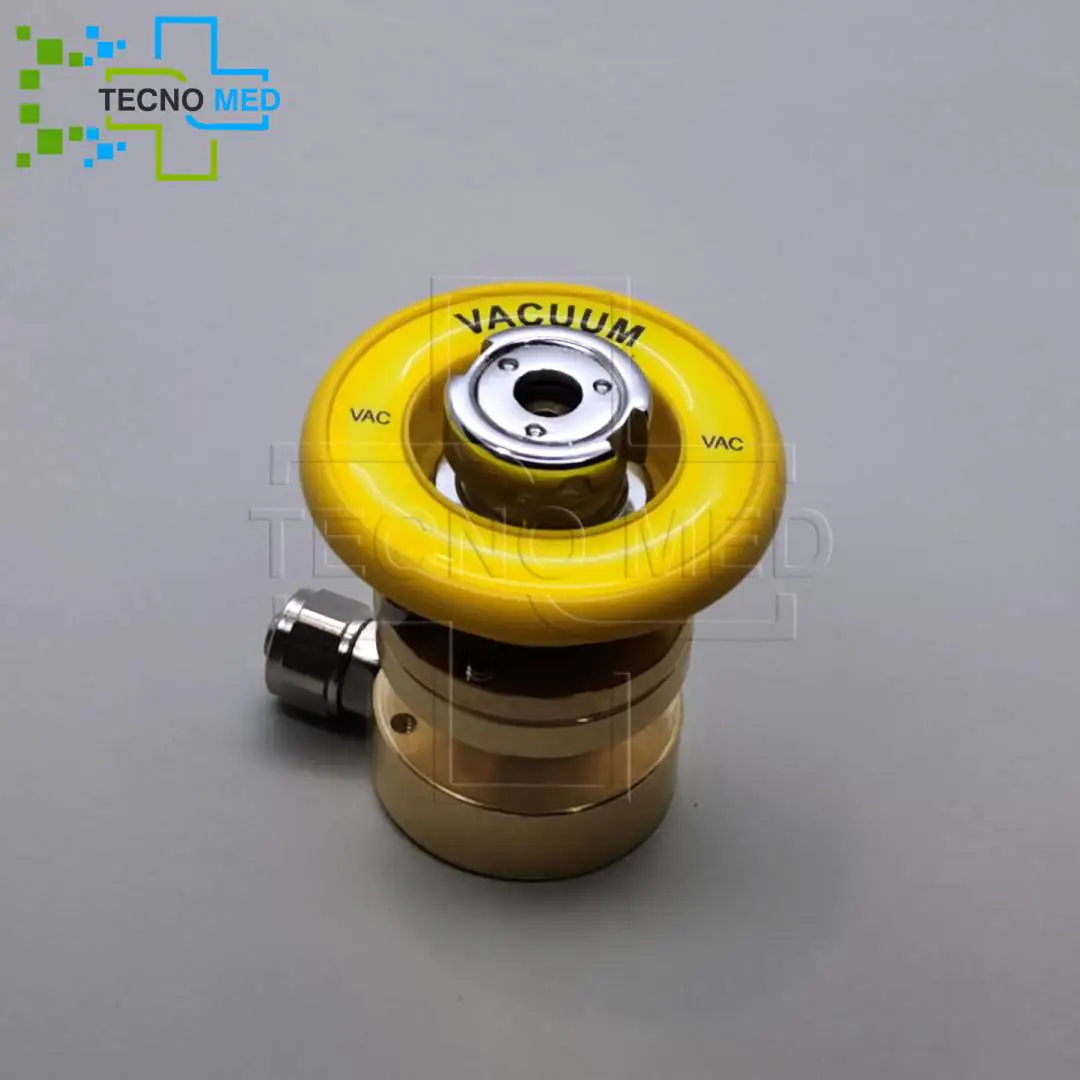

Afnor vakum gaz prizi – medikal vakum çıkışı

What Is an AFNOR Medical Gas Outlet?

A medical gas outlet is a terminal interface component that ends the flow coming from medical gas pipelines at the point of use and allows safe connection to medical devices. AFNOR outlets follow a standard widely used in Europe. Their connection type and internal design are engineered to operate only with AFNOR-compliant equipment.

Technical Specifications

Feature	Description
Compliance Standard	AFNOR Norm
Gas Types	Oxygen (O₂), Vacuum, Nitrous Oxide (N₂O), Anaesthetic Gas (MA4)
Working Pressure	O₂ / N₂O / MA4: 4 – 5 bar Vacuum: -0.9 bar
Connection Type	Dedicated AFNOR-type socket system
Mounting Type	Flush-mounted, panel-mounted, or pendant-compatible
Color Coding	Compliant with EN ISO 7396-1 and AFNOR system color coding
Leak Tightness Test	100% tested after production
Modular Design	Replaceable internal mechanism with cartridge system
Body Options	Plastic body / Metal body (Stainless Steel)

Plastic vs. Metal Body Comparison

Feature	Plastic Body (ABS Composite)	Metal Body (Stainless Steel)
Durability	Standard	High
Weight	Lightweight	Medium
Material	ABS Composite	Stainless Steel

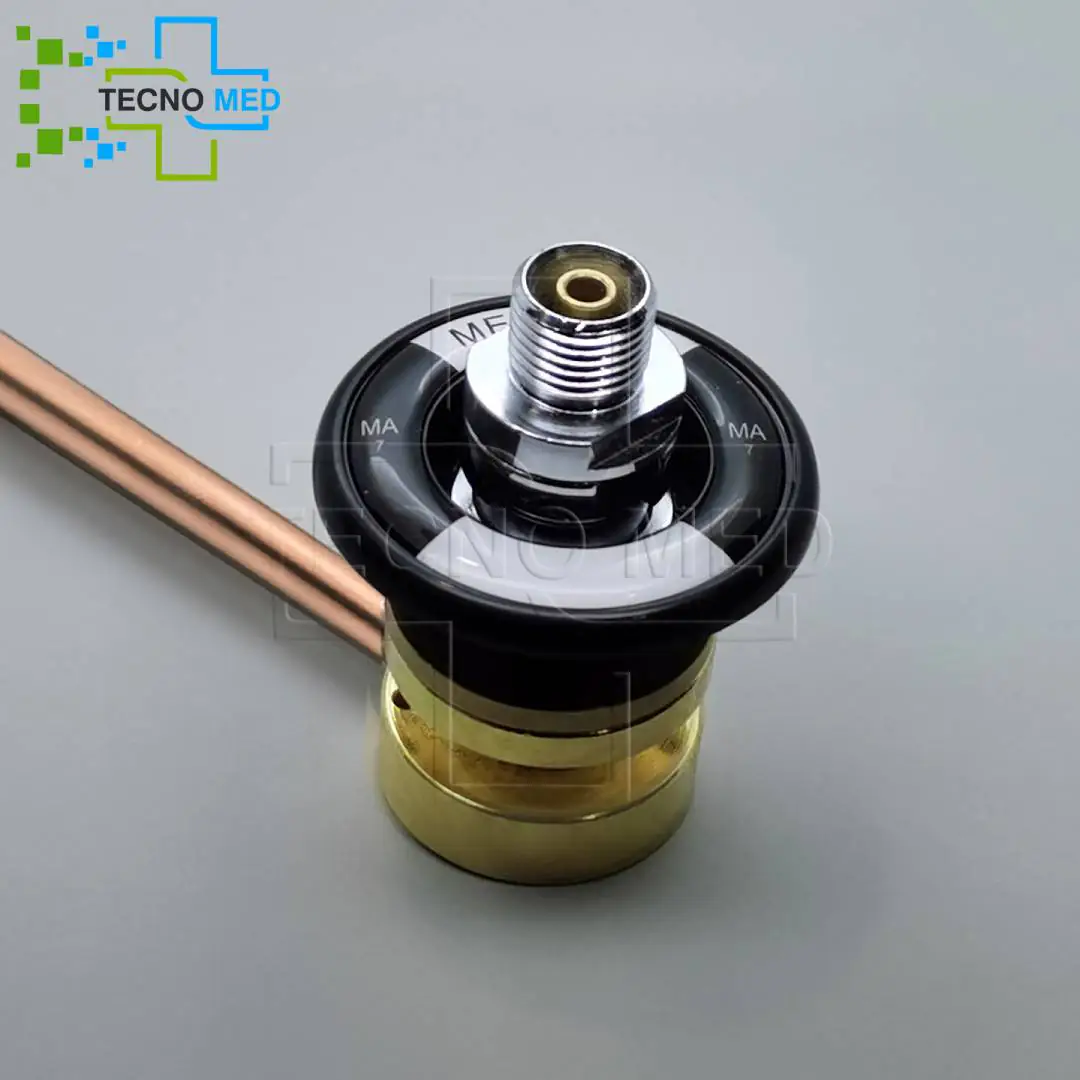

Afnor MA4 medikal hava gaz prizi – tıbbi hava çıkışı

Quality Documents and Certifications

EN ISO 13485
CE (MDR 2017/745)
EN ISO 7396-1 Compliance
AFNOR Norm compliance
Product test reports and factory release documents

Afnor N₂O gaz prizi – azot protoksit çıkışı

Advantages of Tecnomed Medical Gas Outlets

Technical compliance with international standards
Color-coded safe connection system
Modular, serviceable design
Flexibility for project-based production
Sleek and functional design

Afnor co2 gaz prizi – Karbondioksit çıkışı

Commonly Used Terms

In the industry, this product is also known as:

AFNOR gas outlet, medical gas outlet, quick release AFNOR socket, AFNOR outlet socket, AFNOR terminal socket, gas terminal point, French type gas outlet, medical AFNOR outlet

Frequently Asked Questions

What is an AFNOR medical gas outlet?

An AFNOR medical gas outlet is a point-of-use medical gas outlet with a specific mechanical connection standard commonly used in France-origin systems. It works only with AFNOR-compatible equipment.

Is there a difference between AFNOR and DIN or BS systems?

Yes. Each standard has a different connection type, socket structure, and gas module compatibility. Using the correct standard is essential to avoid confusion and safety risks.

How are medical gas outlets installed?

They can be installed flush to the surface, on panels, or on pendant systems. Our technical team provides support with the required accessories.

Should I choose a plastic or metal body?

It depends on the application area. Plastic is suitable for lighter-use areas, while stainless steel is recommended for intensive operational areas.

Does it require maintenance?

Yes. At least one functional and leak tightness test per year is recommended.

Similar Medical Gas Outlets

Medical Gas Outlet Afnor Norm – Quotation & Information

With Medical Gas Outlet Afnor Norm, Tecnomed provides safe and high-performance medical gas outlet solutions compliant with the French standard. Its certified structure and durable materials ensure long service life in operating theatres, intensive care units, and clinical applications. Contact us for project-specific gas type, connection, and mounting options.

👉 Contact Tecnomed for more information and project-specific solutions.
