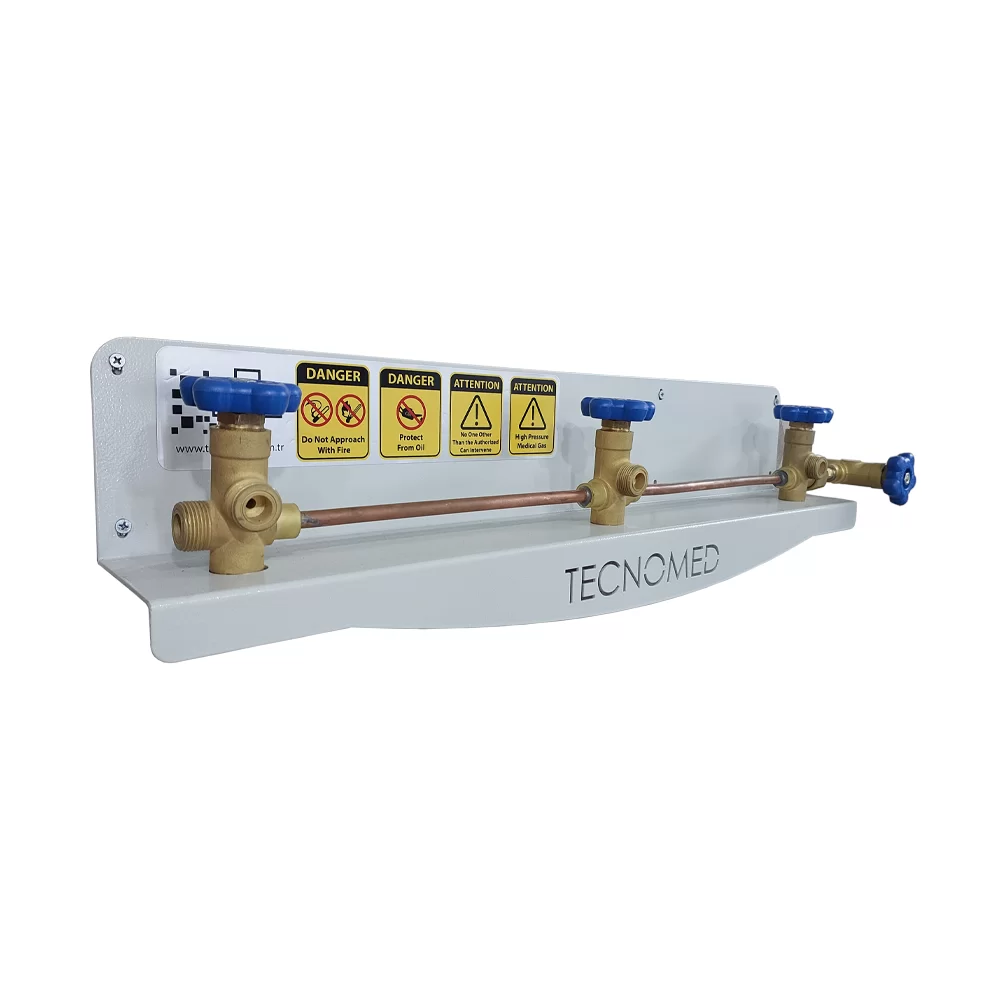

Cylinder Ramp: Reliable Oxygen Transfer from Cylinders to Manifold Systems

The Cylinder Ramp is a critical component in medical gas systems, specially designed to transfer oxygen from gas cylinders or cylinder bundles into a manifold system. This setup ensures smooth, stable, and high-capacity oxygen flow, making it essential in hospitals, clinics, and any medical environment that relies on cylinder-based oxygen supply.

In systems where oxygen is supplied through multiple cylinders, the ramp functions as a unifying line that collects and distributes the gas evenly to the central pipeline. This makes the Cylinder Ramp a vital point of connection between storage and active usage.

---

Built for High Capacity Flow

One of the defining features of the Cylinder Ramp is its ability to maintain high-volume oxygen flow without pressure drops. This is achieved through the use of medical-grade copper pipes, chosen specifically for their wall thickness and compatibility with high-pressure medical gases.

The ramp is engineered to perform reliably even under peak flow demand. Whether the oxygen is coming from individual cylinders or bundled sets, the ramp ensures consistent delivery across the entire pipeline system.

---

Durable Construction with Certified Materials

The base of the Cylinder Ramp is made from galvanized metal, providing structural support and resistance to corrosion. This durable foundation allows for stable mounting and long-term use in demanding medical environments.

Additionally, the oxygen valves used in the ramp are produced from cast brass, a material selected for its strength and compatibility with oxygen. Brass components ensure leak-proof operation and reduce the risk of ignition in oxygen-rich environments.

---

Technical Specifications

According to the product configuration, the Cylinder Ramp includes:

• Galvanized base structure

• Oxygen valves made of cast brass

• Medical copper pipes for high flow oxygen transfer

• Output connection size: ¾ inch

These dimensions and materials are specifically chosen to provide a long-lasting and dependable connection between cylinders and the gas distribution network.

---

Application and Installation

The Cylinder Ramp is used in various oxygen supply setups, including:

• Hospital cylinder banks

• Emergency medical gas supply systems

• Temporary oxygen support units

• Backup cylinder assemblies

Thanks to its simple but robust design, the ramp can be easily mounted and connected to both wall-mounted and floor-based cylinder configurations.

Installation requires minimal tools and time. Once connected, the system provides a seamless oxygen supply path from each cylinder through the manifold line and into the medical gas distribution network.

---

Safety and Functionality

The materials used in the Cylinder Ramp are selected not only for their performance but also for their safety. Medical copper is well-known for its antimicrobial properties, and brass valves are non-sparking, making them safe for oxygen handling.

The ¾” output connection is standard for high-flow applications, ensuring compatibility with most medical gas systems without the need for adapters or reducers. This also ensures smooth flow even at the highest oxygen demand moments.

---

Key Features of the Cylinder Ramp

• Transfers oxygen from cylinders or bundles

• Uses medical-grade copper pipes with proper wall thickness

• Cast brass valves ensure secure and durable performance

• Galvanized base for structural integrity

• ¾” output connection for high-volume flow

• Ideal for hospitals, clinics, and mobile oxygen stations

• Easy to install, long-lasting design

---

Conclusion

The Cylinder Ramp by Tecnomed is an essential part of oxygen cylinder systems, combining high-flow capacity with durability and safety. With its copper pipe construction, brass valve fittings, and galvanized support, it offers hospitals and healthcare facilities a dependable solution for oxygen supply via cylinder manifolds.

Whether used in mainline medical gas systems or as part of an emergency backup unit, the Cylinder Ramp ensures continuous and safe oxygen distribution under all conditions.
