Elegance Zone Gas Control Unit for Safe and Visual Gas Line Control

The Elegance Zone Gas Control Unit by Tecnomed is an advanced gas panel designed for monitoring and emergency shut-off of medical gases within hospital environments. Installed at strategic locations such as operating theaters, ICU zones, and medical floors, it ensures real-time pressure monitoring and fast response during emergencies.

---

Controls Up to 6 Medical Gases

This unit supports pressure control and shut-off for the following gas services:

• Oxygen

• Medical Vacuum

• Medical Air (4 bar)

• Surgical Air (7 bar)

• Nitrous Oxide

• Carbon Dioxide

Each gas line is equipped with on-off medical valves, low-pressure sensors, and independent analogue manometers, providing accurate, visible control.

---

Certified to Medical Standards

The Elegance Zone Gas Control Unit is manufactured in compliance with:

• EN ISO 7396-1

• HTM 02-01

These standards ensure that it meets the required safety, hygiene, and functional criteria for use in clinical gas distribution systems.

---

Durable and Ergonomic Design

The unit’s outer case is made of electrostatically painted DKP sheet metal, providing high resistance to corrosion, moisture, and damage.

Key features include:

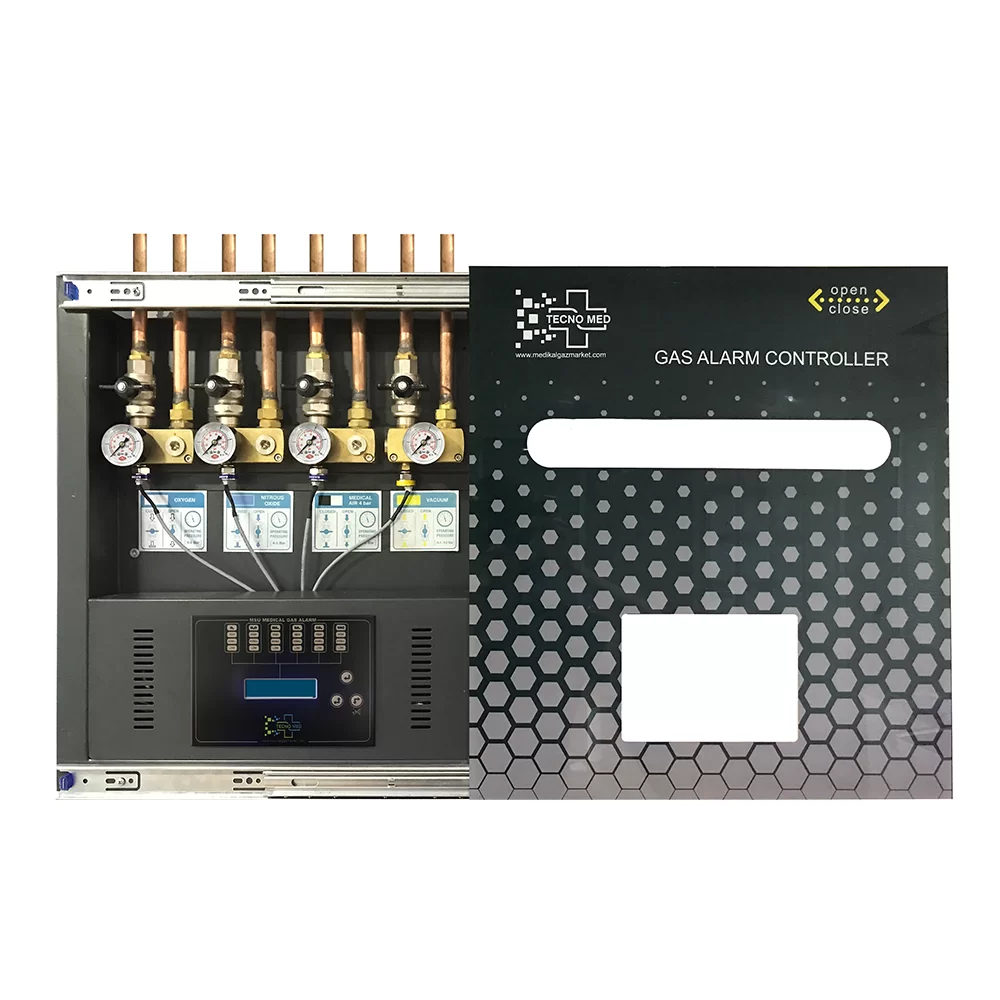

• Side-openable front cover for easy access

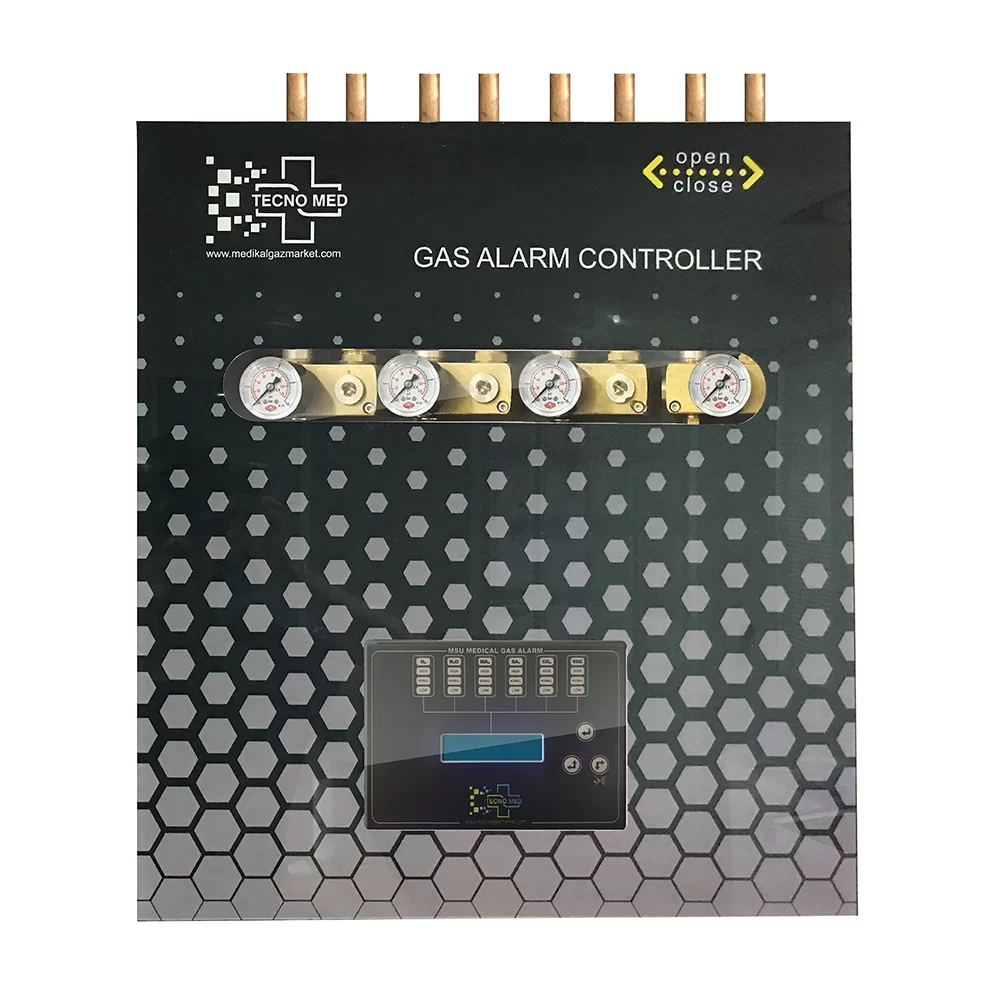

• Plexiglass sliding front window with printed design

• Clear viewing window to observe both manometers and digital alarms

• Brass pressure billets and medical-grade shut-off valves

---

Mounting and Customization Options

The Elegance Zone Gas Control Unit is available in:

• Surface mounted model

• Flush mounted model

This allows seamless integration into hospital wall systems or standalone surface frames, depending on architectural requirements.

---

Optional Features

To increase its operational flexibility and visual alignment with hospital standards, Tecnomed offers:

• Emergency electrical power socket integration

• Custom cover colors matching hospital branding

These options help improve both functional reach and visual identity of critical care environments.

---

Features and Benefits

• Controls 1 to 6 gases including vacuum

• Low pressure sensors for each line

• Individual analogue manometers per gas

• Medical shut-off valves made from durable components

• Side-opening access panel for ease of maintenance

• Viewing window for both manometers and digital alarm

• Flush and surface mounting options

• Designed using DKP metal and plexiglass

• Complies with EN ISO 7396-1 and HTM 02-01

• Optional emergency socket and custom design

---

Application Areas

• Operating theaters

• Intensive care units

• Emergency service zones

• Medical gas plant rooms

• Diagnostic and treatment floors

The Elegance Zone Gas Control Unit ensures zone-level control and quick intervention capability, safeguarding patients and staff from pressure anomalies or supply interruptions.

---

Conclusion

Tecnomed’s Elegance Zone Gas Control Unit offers a fully certified, visually accessible, and ergonomically built solution for zone-level gas control in hospitals. With optional designs and wide gas compatibility, it enhances both patient safety and technical efficiency in modern healthcare infrastructure.
