Medical Gas Alarm Unit for Real Time Pressure Monitoring and Safety

The Medical Gas Alarm Unit by Tecnomed is an essential safety device used in hospital medical gas pipeline systems to continuously monitor gas pressure levels. When gas pressure values go beyond preset thresholds, the unit provides audible warnings and transmits real-time information to the central automation system.

---

Dual Alarm for High and Low Pressure Detection

For each connected gas line, the unit can generate:

• Low Pressure Alarm
  A high-priority alarm indicating that the gas pressure has dropped below the critical limit.

• High Pressure Alarm
  A high-priority alarm signaling that the gas pressure has risen above the safe operating level.

These alarms ensure that both under-supply and overpressure risks are detected instantly, protecting patients and sensitive medical equipment.

---

LCD Display for Local Monitoring

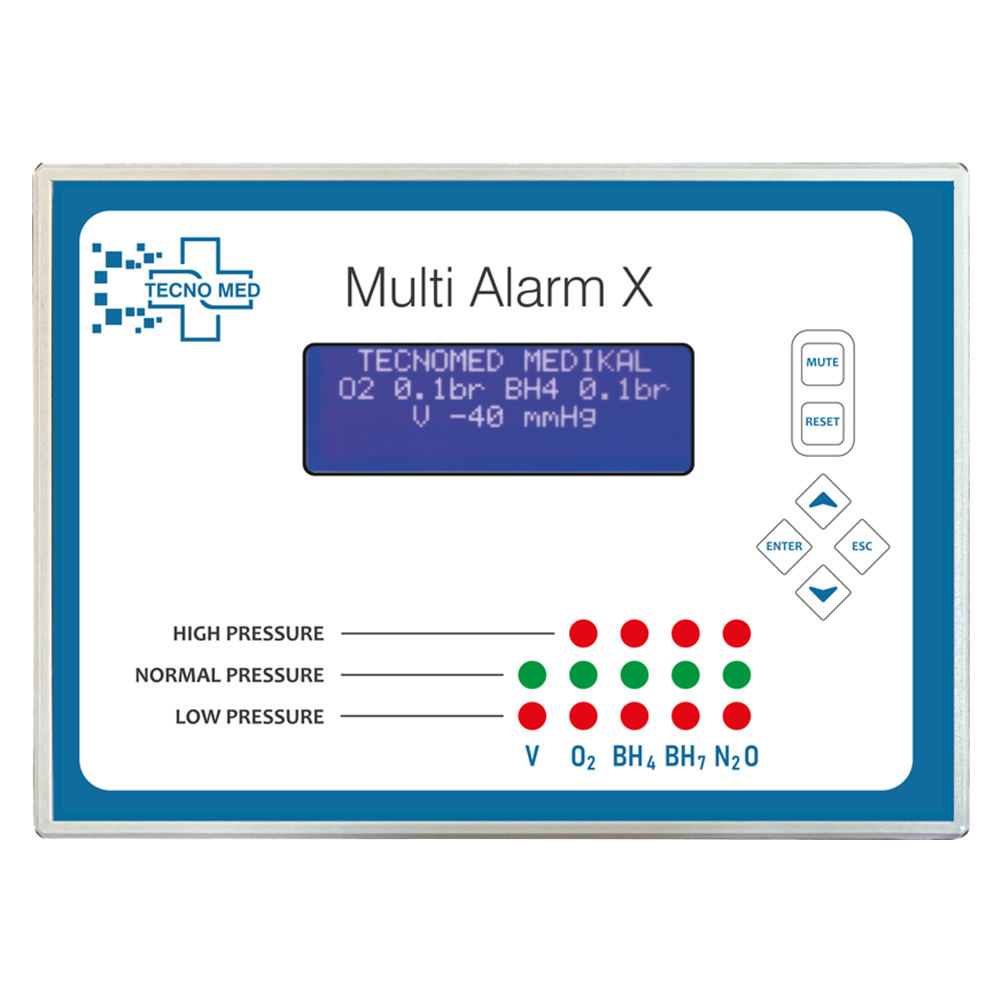

The Medical Gas Alarm Unit features an integrated LCD screen that displays:

• Real-time gas pressure values

• Alarm status notifications

• Current limit settings for each monitored gas

This allows on-site personnel to visually verify gas status without accessing central control panels.

---

Communication with Automation Systems

The unit is equipped with RS485 / Modbus communication capabilities, enabling it to transmit:

• Pressure values

• Alarm triggers

• Threshold settings

to the building’s central automation or SCADA system, allowing centralized tracking, remote supervision, and data logging.

---

Standards and Compliance

The Tecnomed Medical Gas Alarm Unit is manufactured in accordance with:

• HTM 02-01

• HTM 2022

• BS EN ISO 7396-1

• TSE EN ISO 61601-2

These standards confirm its suitability for use in regulated healthcare environments and medical infrastructure projects.

---

Functional and Reliable Alarm Monitoring

The unit can monitor multiple gas types commonly found in hospital pipeline systems, including:

• Oxygen

• Medical Air

• Surgical Air

• Nitrous Oxide

• Carbon Dioxide

• Medical Vacuum

Each line is independently monitored with dual alarm thresholds for maximum system control and safety.

---

Features and Benefits

• Monitors high and low pressure for each gas line

• Audible alarm alerts medical staff immediately

• Integrated LCD display for live local data

• Communicates via RS485 / Modbus to automation systems

• Complies with HTM 02-01, HTM 2022, BS EN ISO 7396-1, and TSE EN ISO 61601-2

• Provides digital alarm reporting and real-time visibility

• Supports monitoring of multiple medical gases

• Helps ensure continuous safe gas delivery in hospitals

---

Application Areas

• Hospital gas supply control panels

• Operating rooms and ICUs

• Central gas stations and manifold rooms

• Medical air and vacuum regulation panels

• Automated hospital monitoring systems

This unit enables clinical staff and facility managers to quickly detect pressure issues and take action to prevent equipment failure or risk to patients.

---

Conclusion

Tecnomed’s Medical Gas Alarm Unit is a vital component in any modern medical gas system. With audible alarms, real-time LCD display, and RS485 Modbus integration, it provides critical oversight and automation-ready communication to protect hospital infrastructure and patient safety.
