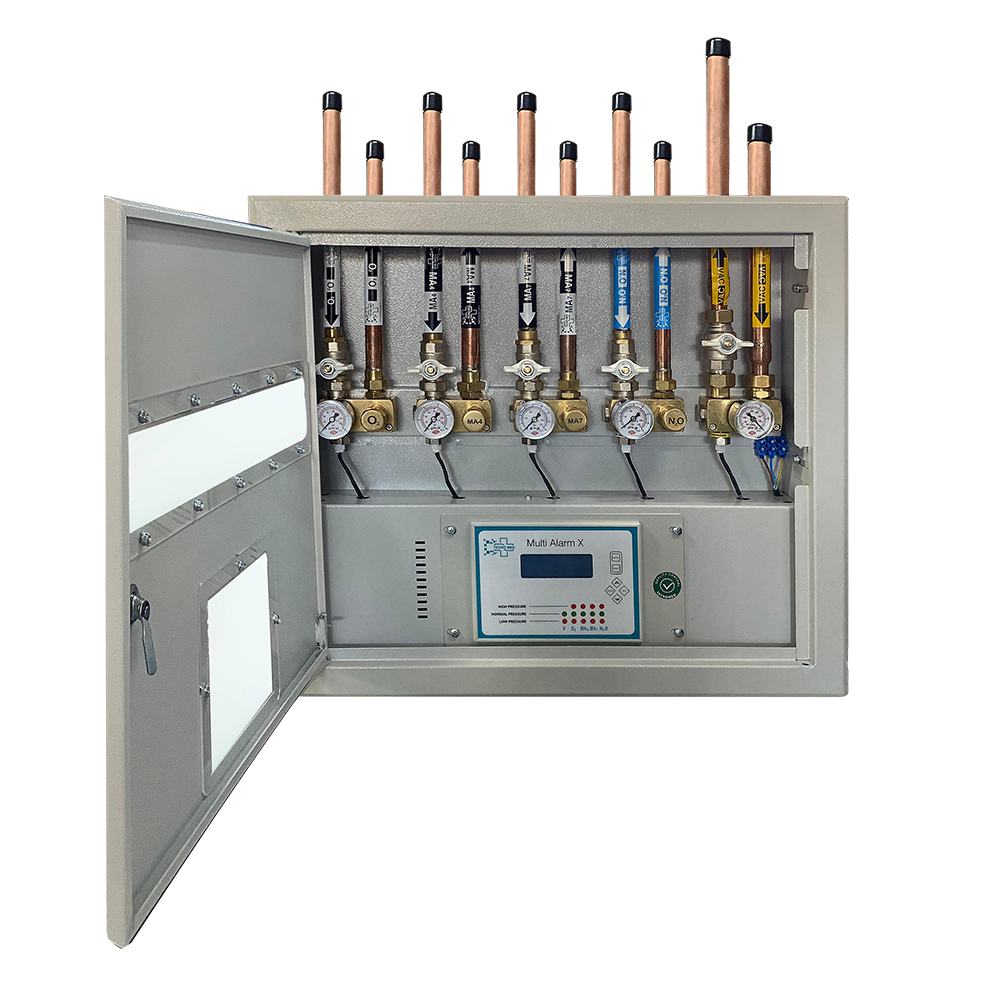

Vexillum Zone Control Service Unit for Critical Gas Line Management

The Vexillum Zone Control Service Unit by Tecnomed is a high-performance medical panel designed to monitor and control medical gas pressure at hospital zone levels. It plays a vital role in ensuring safety and precision in operating rooms, ICUs, emergency floors, and treatment areas, where uninterrupted and controlled gas flow is essential.

---

Controls Up to 6 Medical Gases

This unit manages real-time pressure monitoring and shut-off for six gas types:

• Oxygen

• Medical Vacuum

• Medical Air (4 bar)

• Surgical Air (7 bar)

• Nitrous Oxide

• Carbon Dioxide

Each gas line includes on-off medical valves, low pressure sensors, and dedicated analogue manometers, offering clear and accurate pressure control.

---

Built for Safety and Standards Compliance

The Vexillum Zone Control Service Unit is designed in full compliance with:

• EN ISO 7396-1

• HTM 02-01

This ensures the unit meets stringent international safety requirements for medical gas distribution systems, guaranteeing both performance and reliability.

---

Premium Stainless Steel Construction

The unit’s structure is made of 304-grade stainless steel, including:

• A durable case and cover for enhanced hygiene and corrosion resistance

• A hinged front panel with locking system to secure access

• A transparent monitoring window allowing direct view of manometers and digital alarms

These materials are ideal for sterile environments and intensive medical use.

---

Flexible Installation Options

To suit a wide range of hospital infrastructures, the Vexillum Zone Control Service Unit is available in:

• Flush mounted model

• Surface mounted model

This flexibility ensures smooth integration into wall cavities or surface-mounted technical zones.

---

Functional and Safety-Oriented Design

The unit features:

• Brass pressure slabs for gas durability

• Medical-grade on-off valves for each gas

• Low pressure sensor integration for early warning and emergency shut-down

• Separate analogue manometers for real-time visibility per gas type

These components are configured to provide quick access, efficient maintenance, and maximum uptime in emergency conditions.

---

Features and Benefits

• Controls 1 to 6 medical gases including vacuum

• Complies with EN ISO 7396-1 and HTM 02-01

• 304 stainless steel case and front panel

• Lockable hinged cover with viewing window

• Analogue manometers and low pressure sensors per gas

• Brass internal slabs and certified shut-off valves

• Available in flush and surface mount formats

• Built for operating rooms, ICUs, and emergency zones

---

Application Areas

• Hospital technical floors

• Operating theaters and surgical suites

• ICU and recovery areas

• Oxygen supply control rooms

• Medical gas monitoring stations

The Vexillum Zone Control Service Unit ensures reliable zone-level control and rapid response to any gas pressure abnormality, contributing to uninterrupted patient care.

---

Conclusion

Tecnomed’s Vexillum Zone Control Service Unit is a stainless steel, medically certified solution for monitoring and controlling critical gas lines in hospital zones. With advanced safety features, flexible installation, and compliance with global standards, it’s the trusted choice for modern medical gas management.
